System

CPU

Intel? 3th Core? i3-3227U 1.9GHz，2M L2，2Cores/4Threads

Chipset

Intel? HM76

Memory

DDR3 1600 2GB（4GB、8GB Optional）

Storage

500GB SATA HDD（mSATA Optional）

Expansion Slot

1×Mini-PCIe(WIFI、3G/4G   Supported)

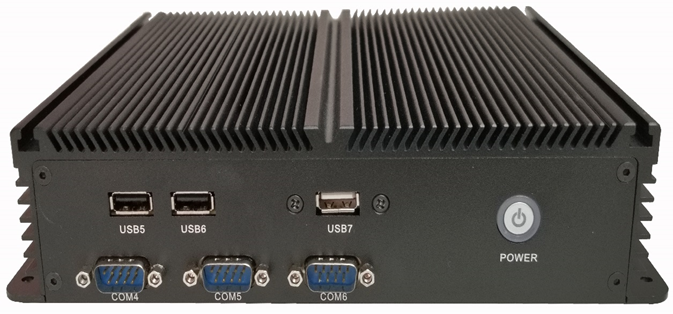

Front I/O

USB

3×USB2.0

COM

3（COM4 Pin#9 5V/12V Power Optional）

PWR Button

1

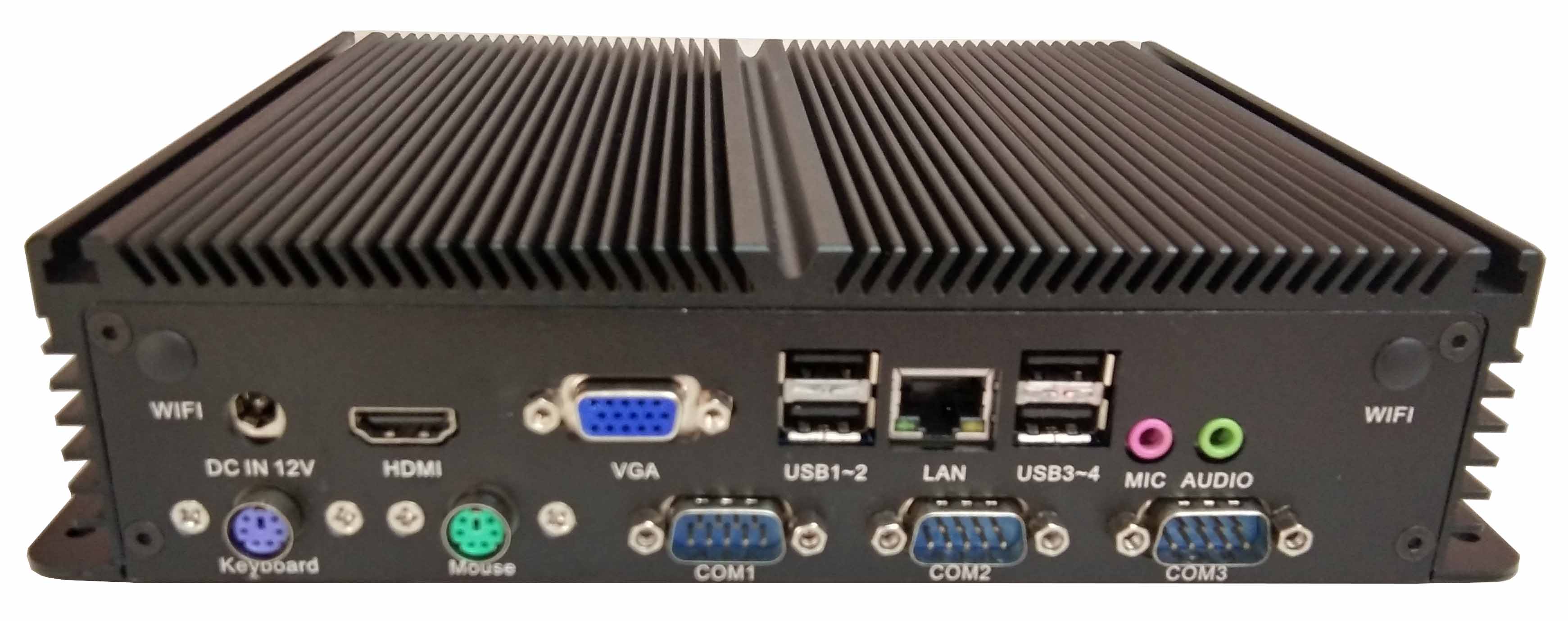

Rear I/O

PS/2

1×PS/2 Keyboard，1×PS/2 Mouse

VGA

1

HDMI

1

USB

4×USB2.0

COM

3（COM2/COM3 Pin#9 5V/12V Power Optional）

Audio

1×Line-out，1×Mic-in

LAN

1×RJ45 1000Mbps LAN

WIFI Antenna

2

DC-IN

1

Mechanical & Environment

Dimensions

234×200×54mm

Power Input

DC 12V

Colour

Black

Temperature

Operation:0~45 ℃                    Storage:-25~75℃

Relative Humidity

Operation:10%~90%                Storage:5%~95%
